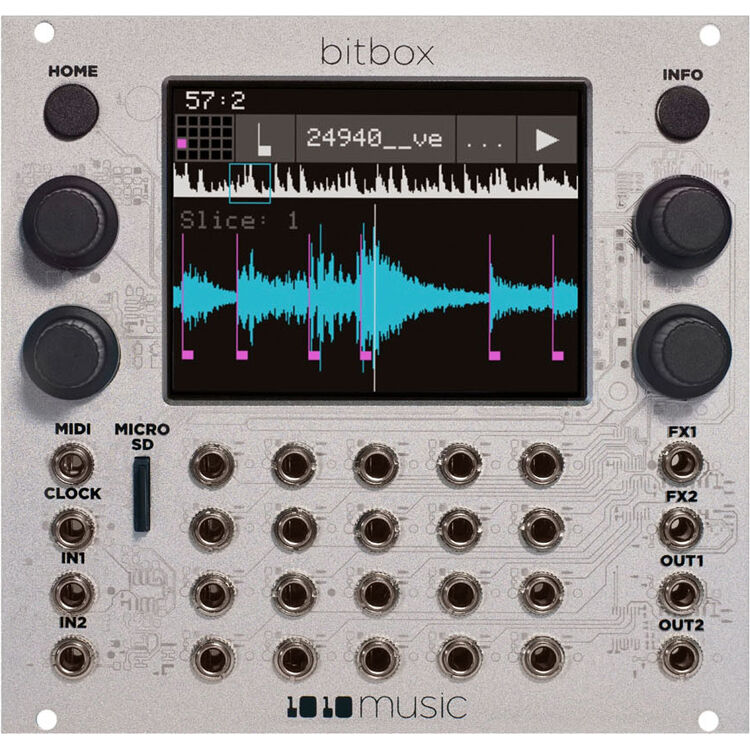

1010music Bitbox MK2 – Modular Sampler for Eurorack Creativity

The Bitbox MK2 from 1010music delivers advanced sampling power in a compact Eurorack format. Designed for modular synth users and live performers, it combines deep functionality—like granular processing, clip launching, and multi-pad sampling—with an intuitive 3.5″ touchscreen workflow. A flexible upgrade for expanding sonic possibilities at Soundium.

Key Features

• 16 sample pads per preset: Assign single samples, multisamples, clips, slicers or granular layers for dynamic sound creation.
• Internal memory or microSD streaming: Use 64 MB of internal RAM for up to 24-voice polyphony, or stream long samples up to 4 GB from microSD.
• Multiple playback modes: One-shot, toggle, gate and loop options, plus slicing, granular playback and clip-mode for synced loops.
• Deep MIDI & CV integration: Trigger pads via gate inputs, play samples chromatically through MIDI or CV, and use modulation inputs for expressive control.
• Built-in delay and reverb: Add space and depth without relying on external effects modules.
• 3.5″ touchscreen interface: Fast sample editing, browsing and performance control right from the module.

Customer Benefits

The Bitbox MK2 streamlines modular sampling by making recording, slicing, layering and looping straightforward and fast. Its touchscreen lets you edit quickly, while deep CV and MIDI connectivity ensure it fits easily into complex modular or hybrid setups. Whether performing live or composing in the studio, it offers a powerful and adaptable sampling toolkit at Soundium.

Quick Specs

• Rack width: 26 HP
• Module depth: approx. 3.2 cm
• Touchscreen size: 3.5″
• Polyphony: Up to 24 voices (internal) or up to 8 stereo streams from microSD
• File support: WAV, 16/24/32-bit, any sample rate (48 kHz preferred)
• Power requirements: +12 V 400 mA, –12 V 0 mA
• Audio resolution: 24-bit ADC/DAC

What’s in the Box

• 1010music Bitbox MK2 module
• microSD card with demo presets and samples
• Eurorack power ribbon cable
• MIDI adapter (mini TRS to 5-pin DIN)
• Quick Start guide and documentation

Use Cases / Ideal For

Ideal for modular synthesists, live electronic performers and studio producers who want sampling, looping, slicing and granular sound manipulation directly inside their Eurorack system.

Compatibility

Works with all standard Eurorack cases and power supplies. Integrates via MIDI (mini TRS) or CV/gate inputs. Supports microSD cards for large sample libraries and firmware updates.

Pros & Cons

✅ Pros:

• Extensive sampling features in a compact 26 HP module
• Touchscreen interface makes editing fast and intuitive
• Strong CV/MIDI connectivity for modular workflows
• microSD streaming supports long samples and full-length clips

⚠️ Cons:

• Requires a Eurorack case and power supply
• Deep feature set can take time to master for beginners

The 1010music Bitbox MK2 brings powerful sampling, modulation options and touchscreen control to any Eurorack setup. For producers and performers who want a flexible, performance-ready sampler, it’s a standout choice at Soundium.
